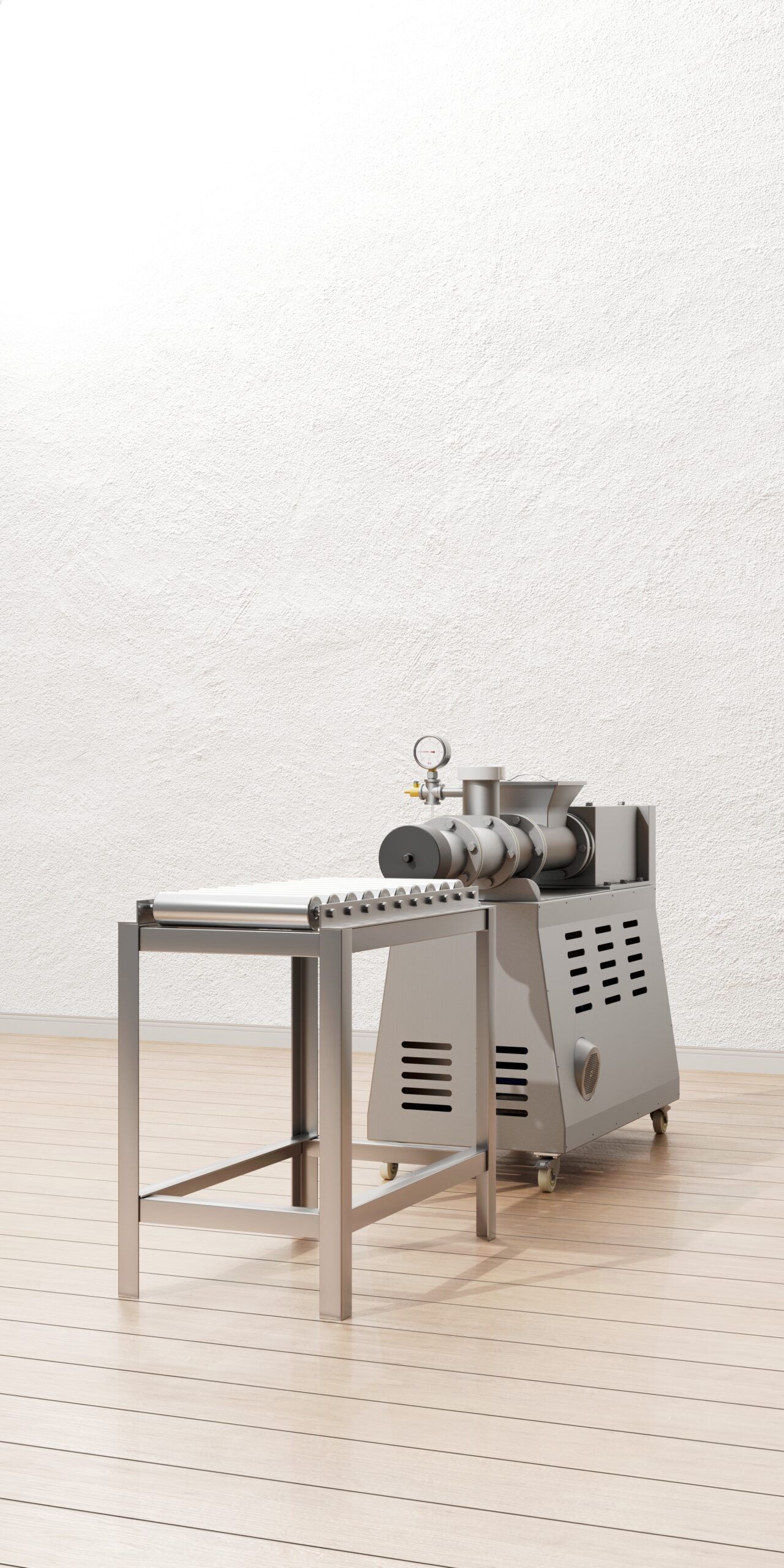

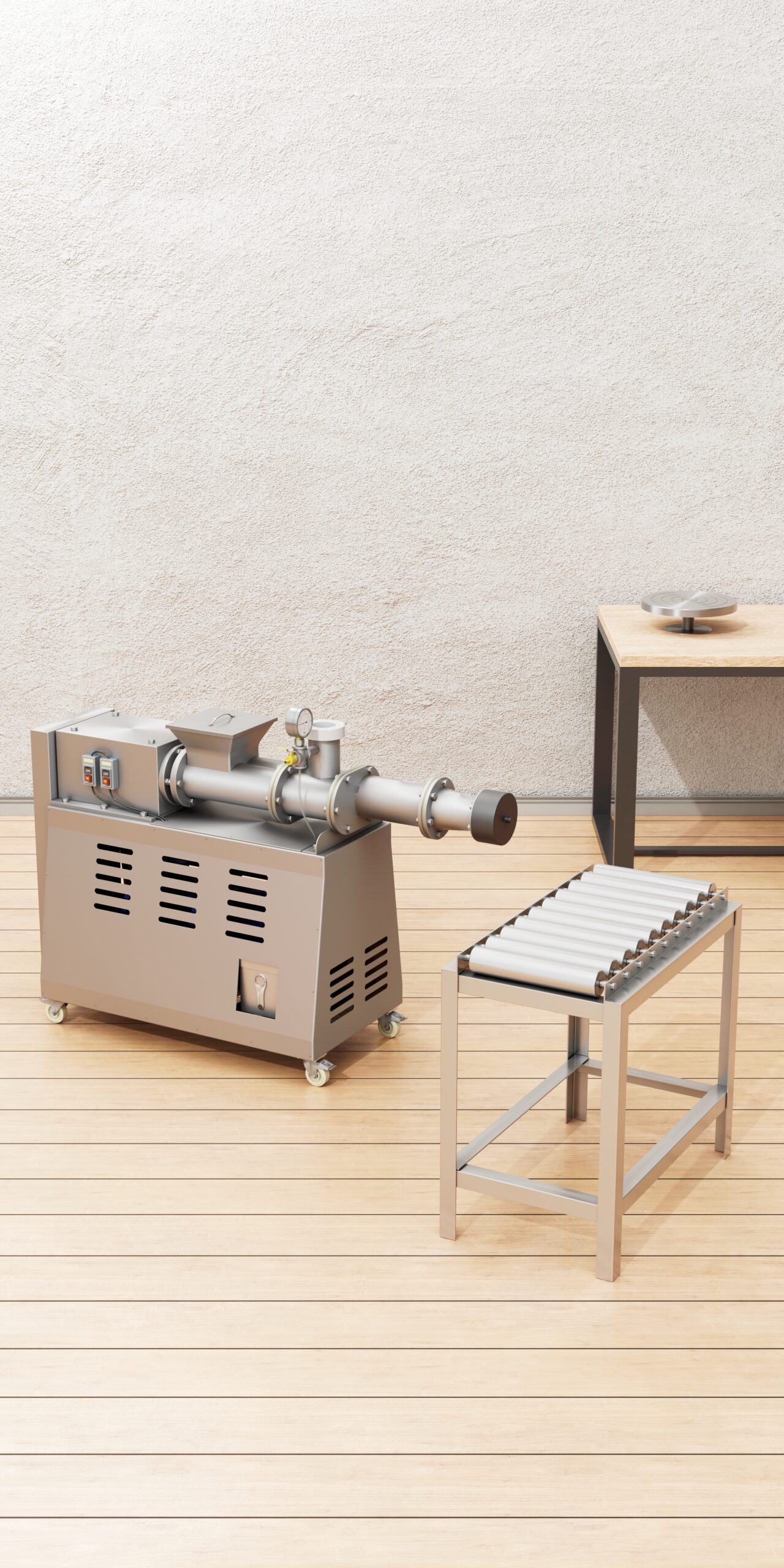

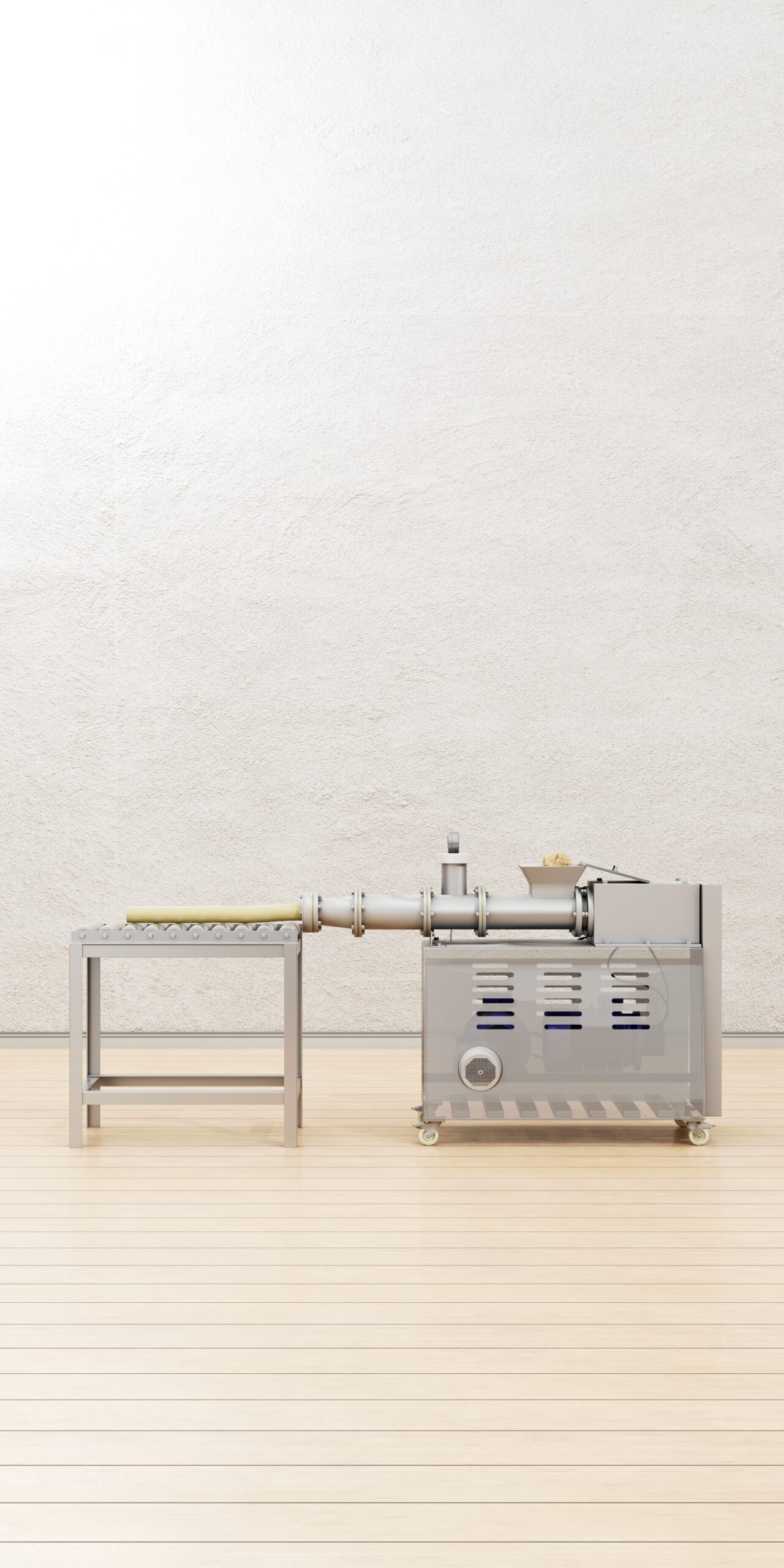

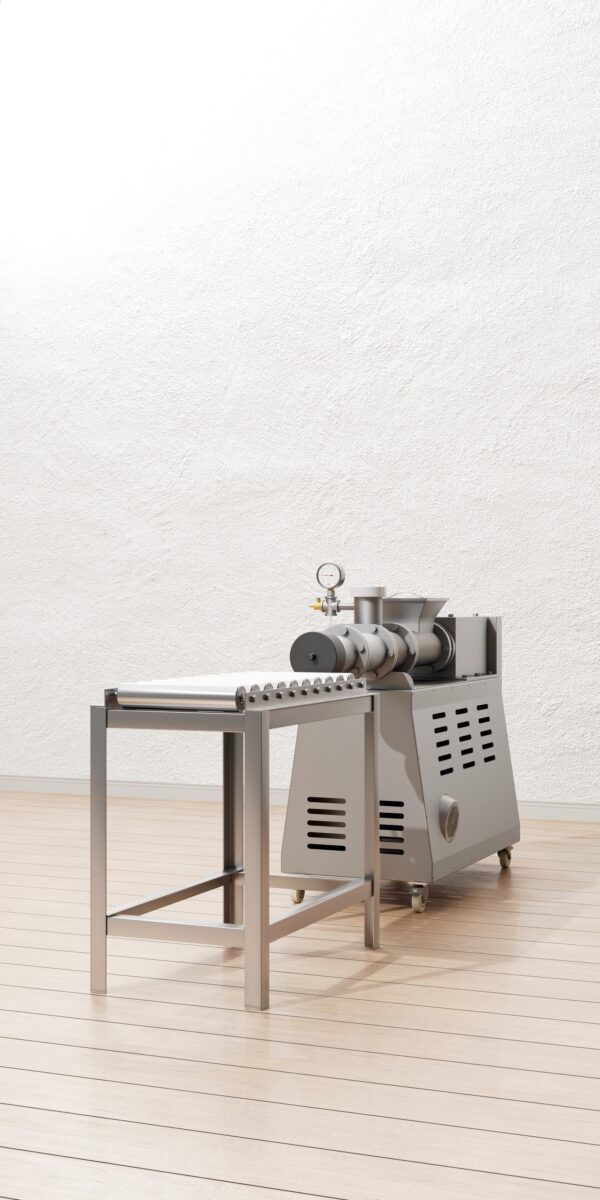

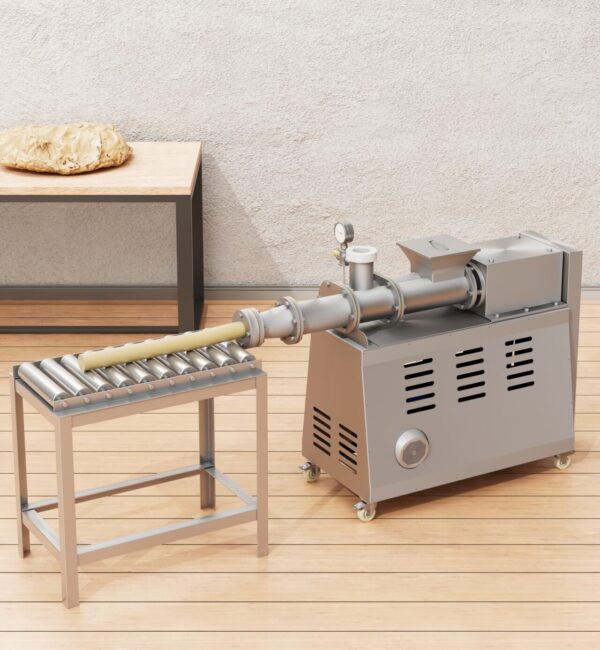

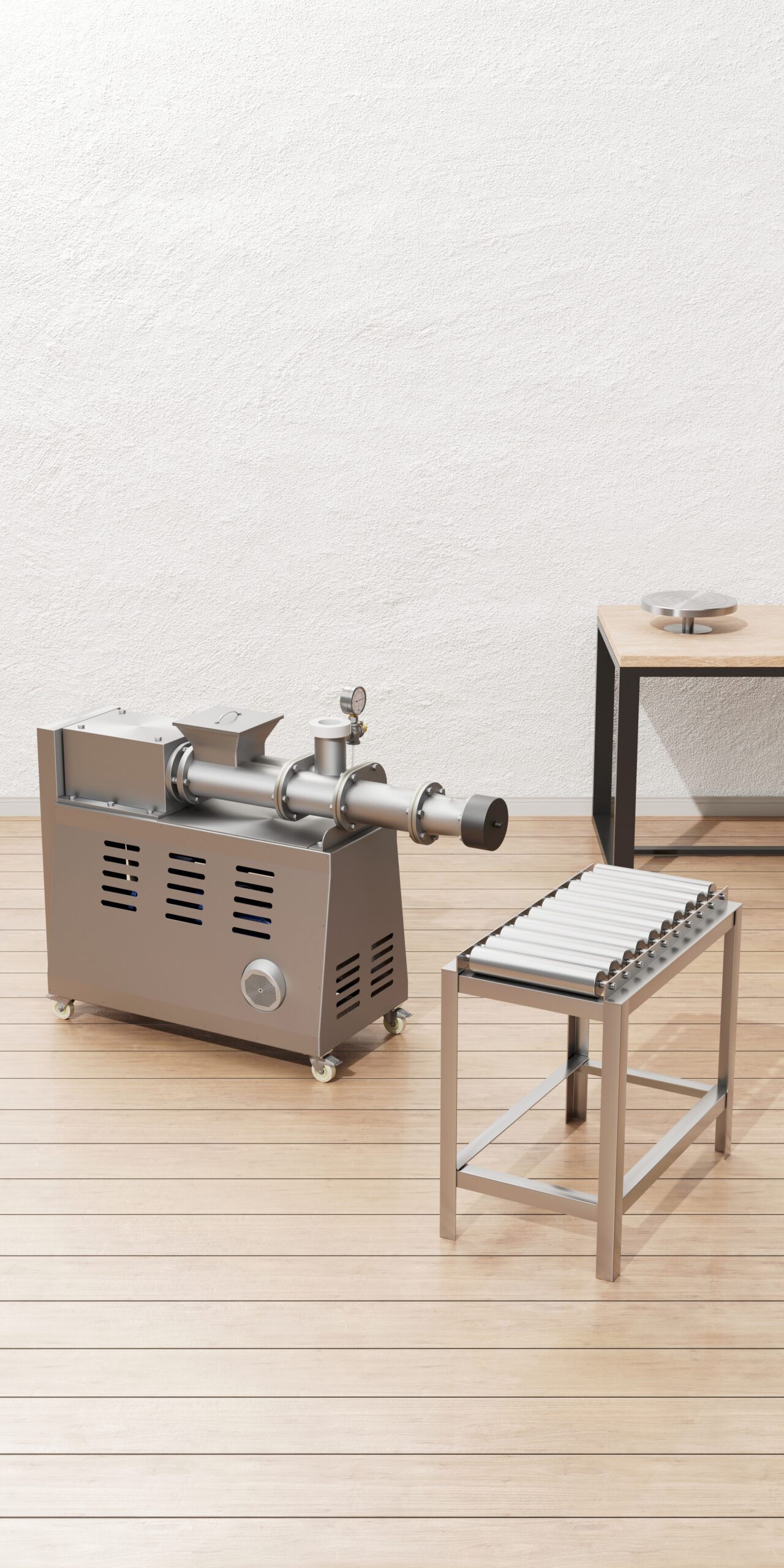

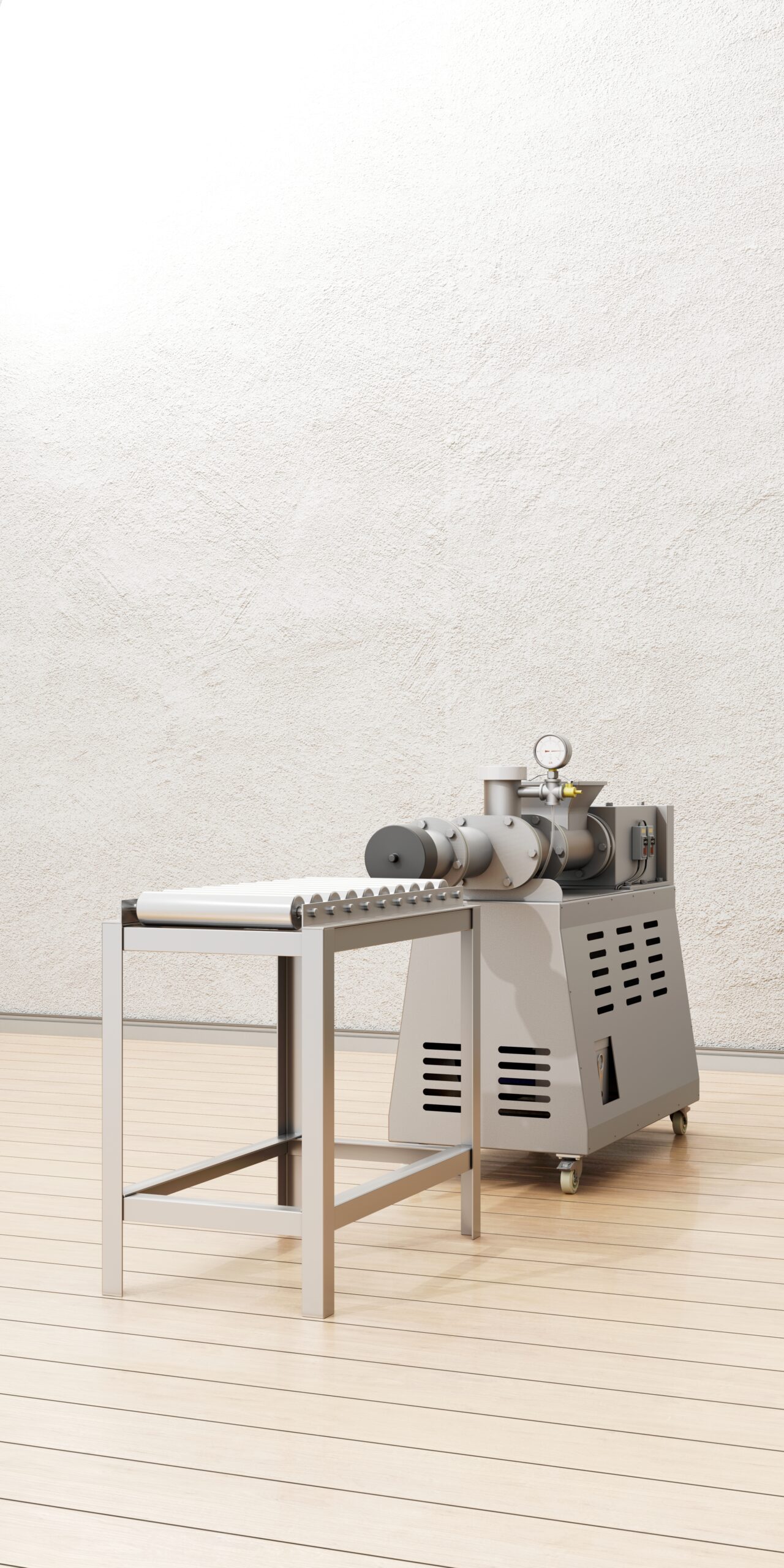

YT-LNJ-03 stainless steel vacuum twin-shaft pug mill.
Product Name: Vacuum twin-shaft pug mill
Motor Power: 0.37KW
Product Model: YT-LNJ-03
Exhaust Speed: 4L/S
Product Power: 1.5KW, 2.5kW
Product Rotation Speed: 1390 revolutions/minute
Product Form: Two-axis horizontal horizontal type
Production Capacity: 100kg/h, 500kg/h
Product Voltage: 220V/380V

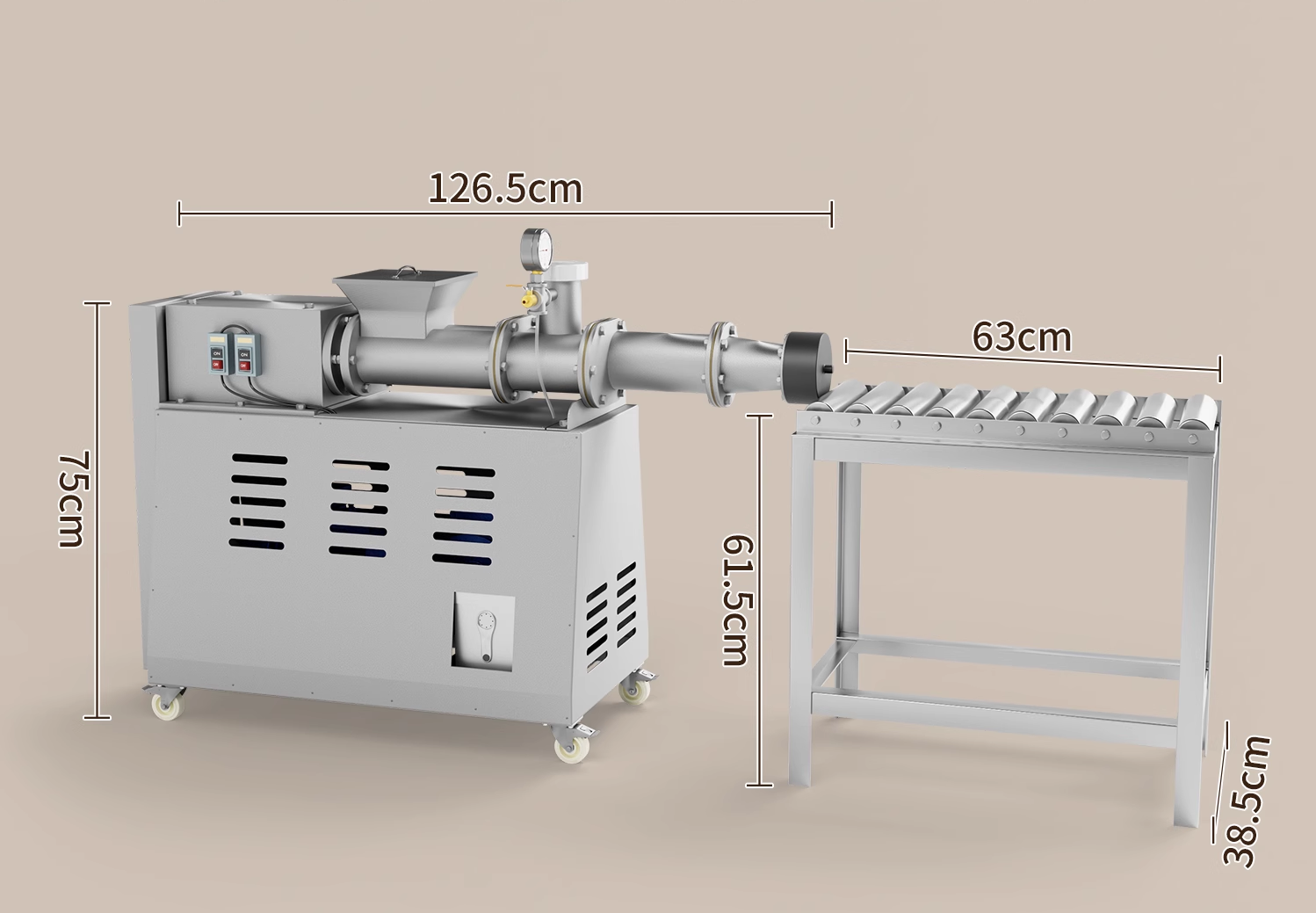

Pug Mill Size: Length 126.5 * Height 75 (cm)

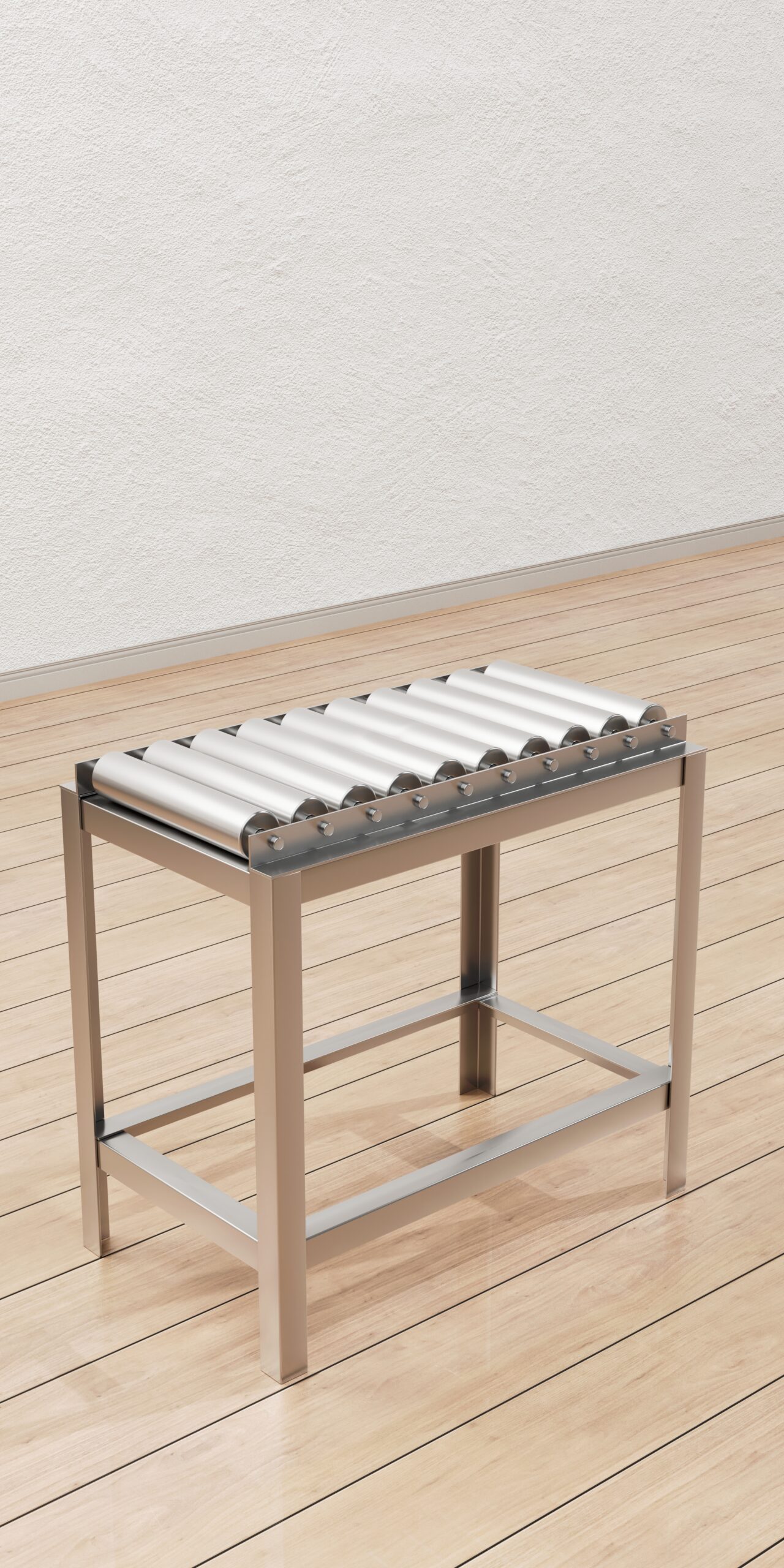

Roller Size: Length 63 * Width 38.5 * Height 61.5 (cm)
The vacuum pug mill is the main professional machinery in the ceramic industry. It is used for preparing clay for bricks and tiles, daily-use ceramics and industrial ceramics. Different molds added at the front end of the clay outlet can extrude various ceramic components. When used on an automatic production line for daily-use ceramics, it can be an automatic quantitative feeder.

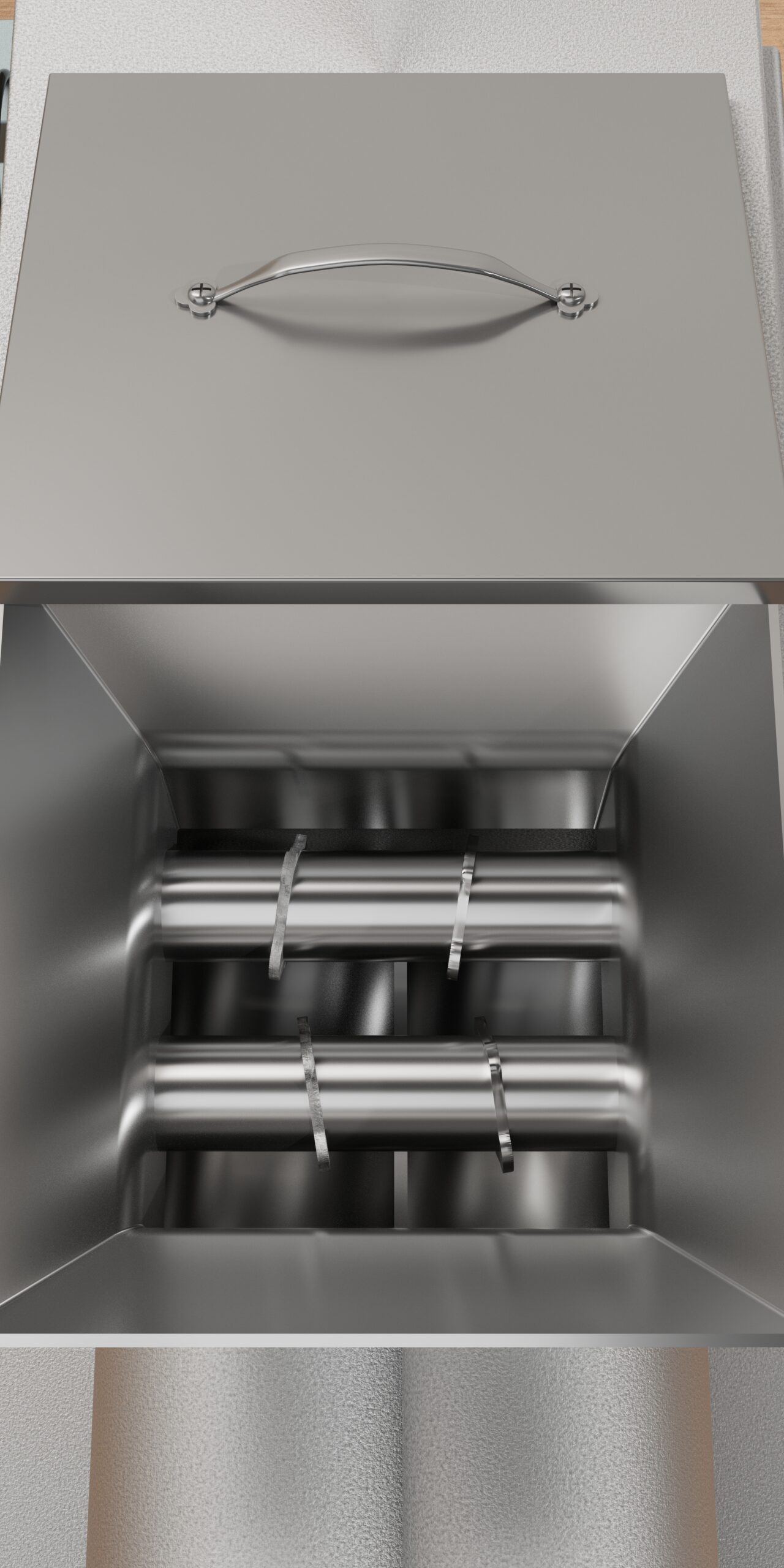

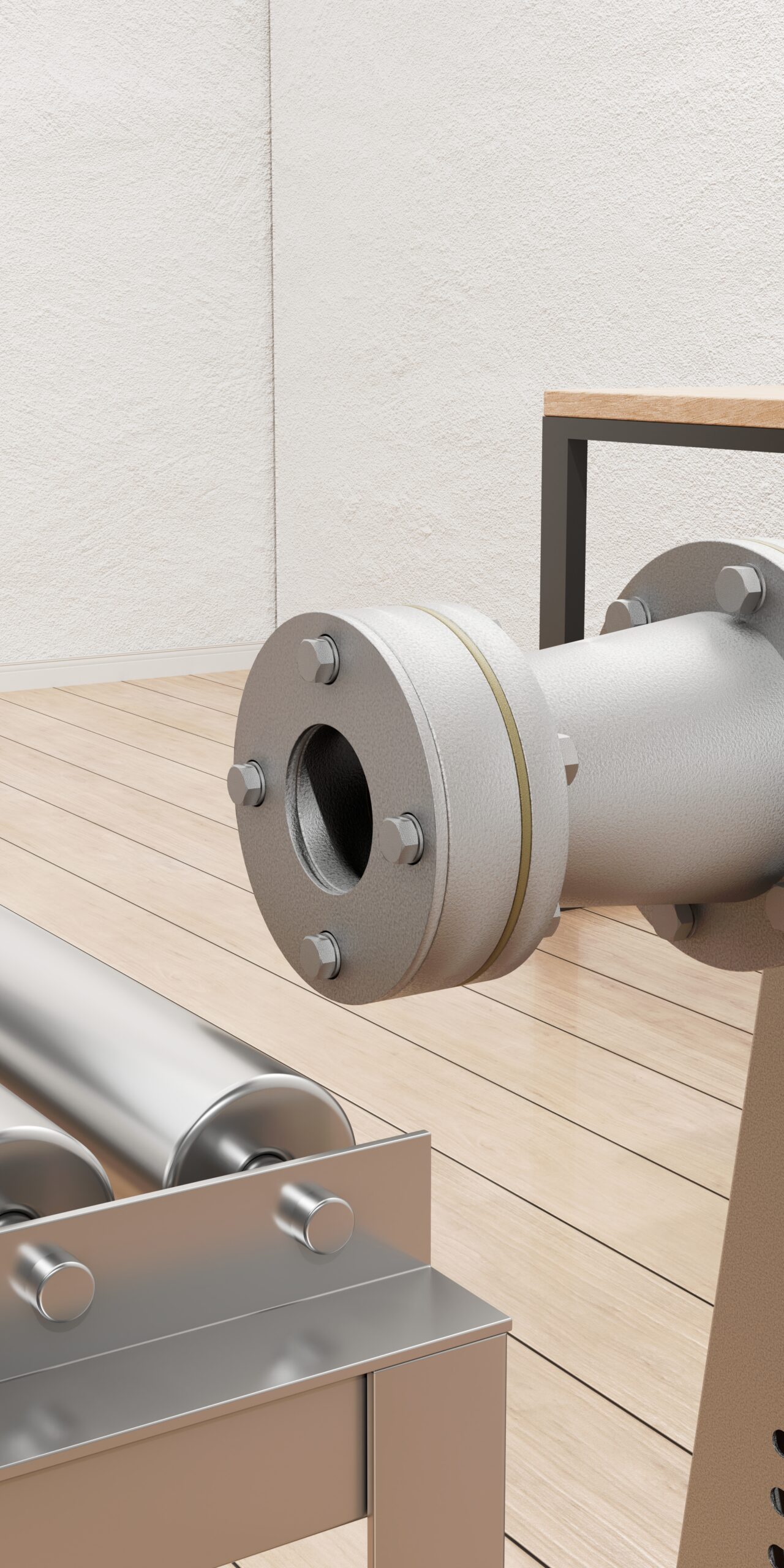

Equipped with a shock-resistant vacuum hydraulic gauge with clear scales, accurate and quick readings, safe and reliable. The outlet is finely polished for smooth clay discharge. Through a grid plate, the clay is extruded into thin strips and enters the vacuum pump to produce high-density and highly plastic green bodies from the machine nozzle. Twin-shaft stainless steel spiral blades ensure smooth clay feeding and strong input without overturning. It is more delicate pugging. No coating prevents clay contamination.
The pug mill has universal wheels at the bottom for easy movement, 360° rotation and direction change. Equipped with a brake fixing device. All stainless steel, durable and rust-free, not contaminating clay. Effortless clay discharge. One-year warranty and lifetime maintenance, providing exclusive brand commitment and perfect service system.
