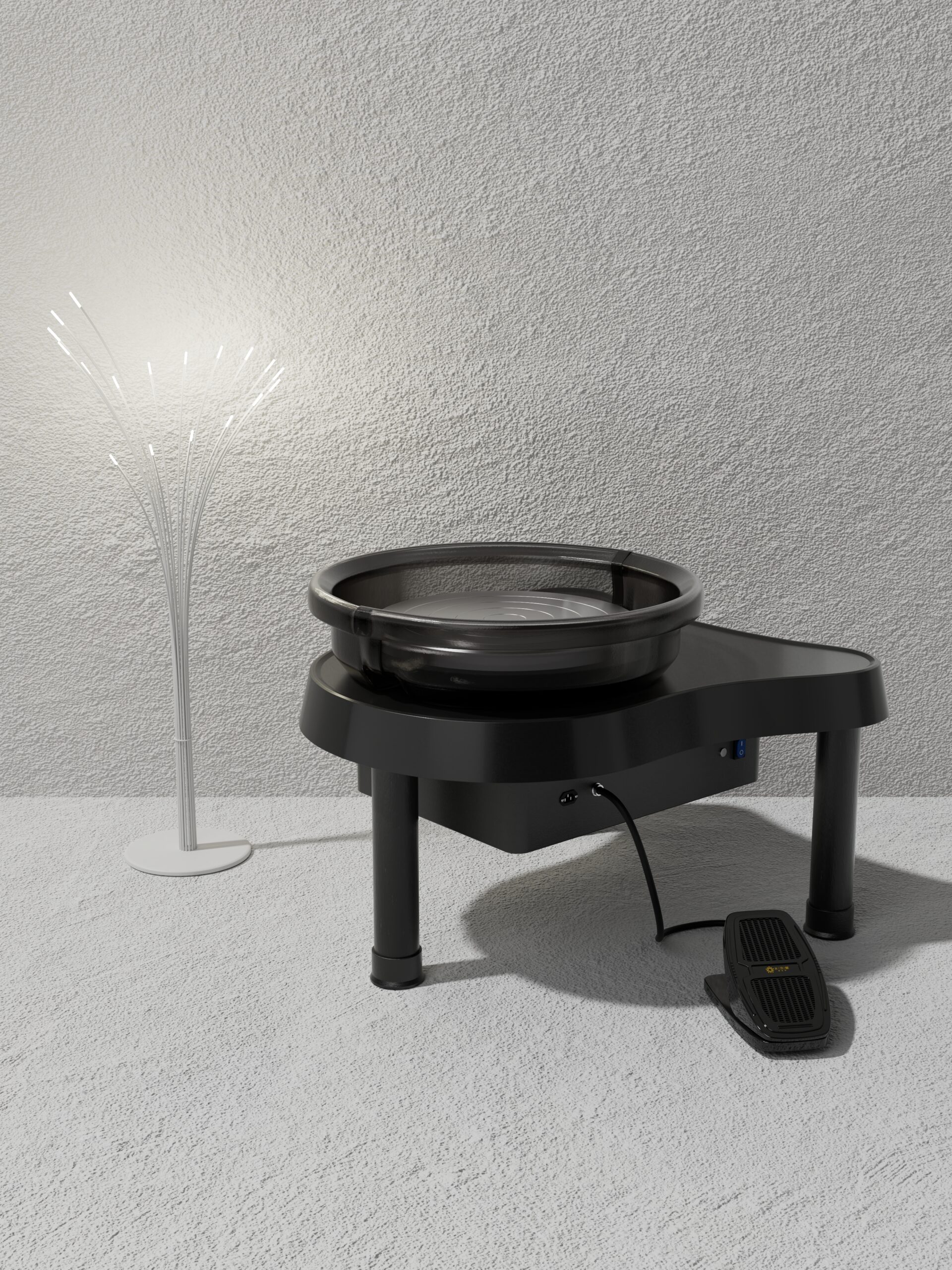

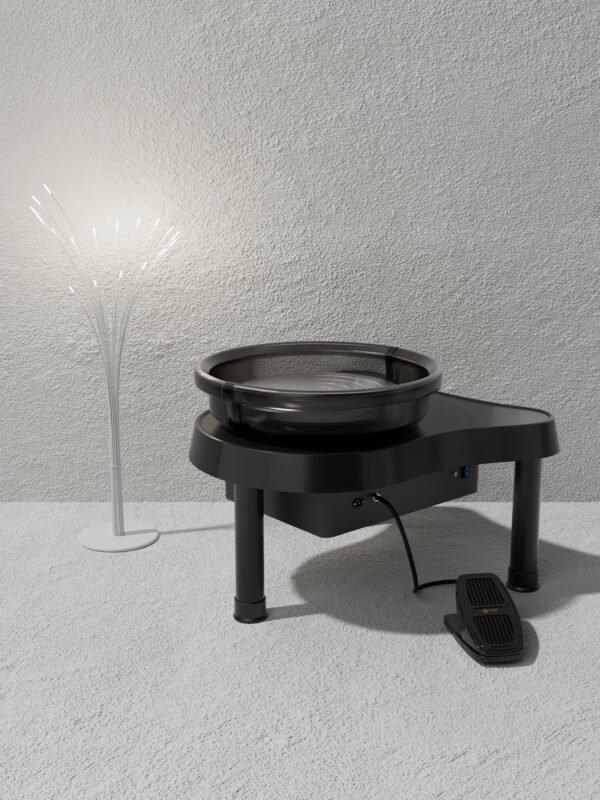

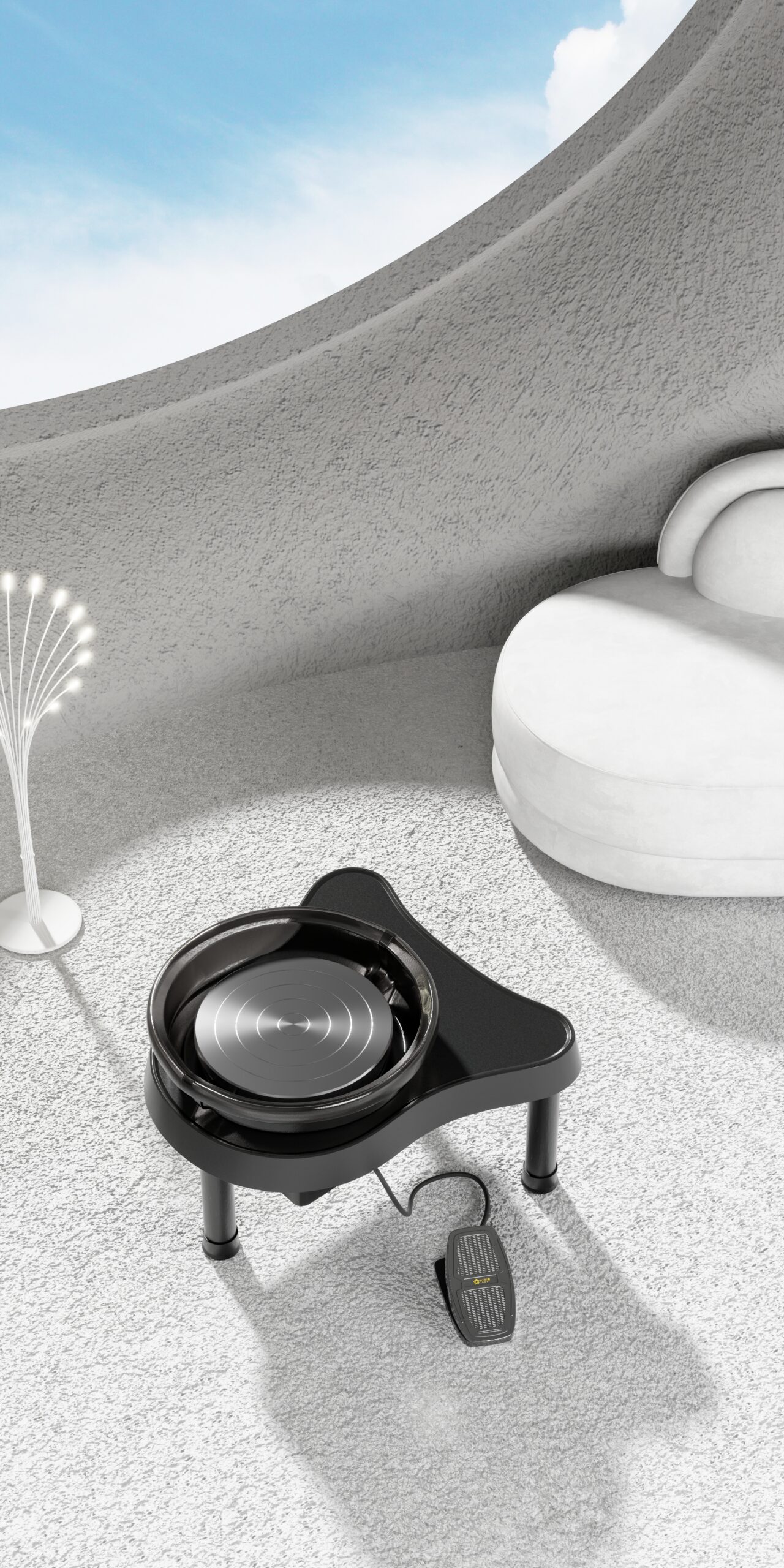

potter’s wheel （“Direct – Drive）
External dimensions: L50 * W41 * H42.5 cm (including the height of the water basin)
Turntable: Aluminum alloy anti – rust turntable, with a diameter of Φ30 cm and a thickness of 2.5 cm
Water basin: Diameter Φ40 cm
Working voltage: AC220V
Power: 400W
Rotational speed: 0 – 300r/min
Load torque: 50 Nm
Stability: The run – out of the aluminum disc is ≤0.05 mm
Whole – machine noise: ≤48 dB
Net weight of the product: ≈20 KG
Motor: DD brushless direct – drive motor
Speed – adjusting method: Foot – pedal speed adjustment
Rotation direction: Both forward and reverse rotations are possible
Motor: The DD direct – drive motor is directly driven without a pulley. Controlled by the mainboard program software, it can reach a low speed of 3 revolutions per minute and still run smoothly without stuttering at the lowest speed. Through the linear acceleration – deceleration control system, the motor runs accurately without delay in acceleration and deceleration. Through bidirectional adjustment by the controller and the main control panel, it can start and stop suddenly, and there will be no back – swing after sudden stop, which will not cause deformation of the blank. After testing in a professional anechoic chamber, the motor noise is controlled below 39.19 dB, effectively reducing the noise of the entire throwing operation. It has a large torque output and can automatically compensate for torque according to the load. The maximum output power of torque compensation can reach 400W, and at the lowest rotational speed, it cannot be stopped by one hand.
Water basin: Made of ABS, an environmentally friendly material. It is installed by snapping, which is durable.
Foot pedal: Aluminum alloy foot pedal, leakage – proof. It is an electronic foot – pedal controller that can be soaked in water, with precise and stable speed control, an extremely long service life, and is waterproof, moisture – proof, and leakage – proof. It meets the national GB/T4208 – 2017 enclosure protection grade. The product meets the IPX2 waterproof standard, and the foot – pedal voltage value works within the range of DC 5V ± 0.5V.
Craftsmanship: Designed by an internationally well – known design brand company. It has a triangular support, and the panel frame is made by one – time die – casting of metal, making the overall structure integrated, ensuring that the overall structure is solid and durable and runs more smoothly. The panel surface is finely sanded to present a matte high – quality texture, which does not collect dust and is easy to clean. The feet of the potter’s wheel adopt a three – legged support, which effectively reduces the swinging of the potter’s wheel caused by an unstable ground.
The 400 – watt motor is powerful enough to easily handle large – scale pottery – making. When rotating at a low speed, it will not stop even if pressed hard, and has high stability.

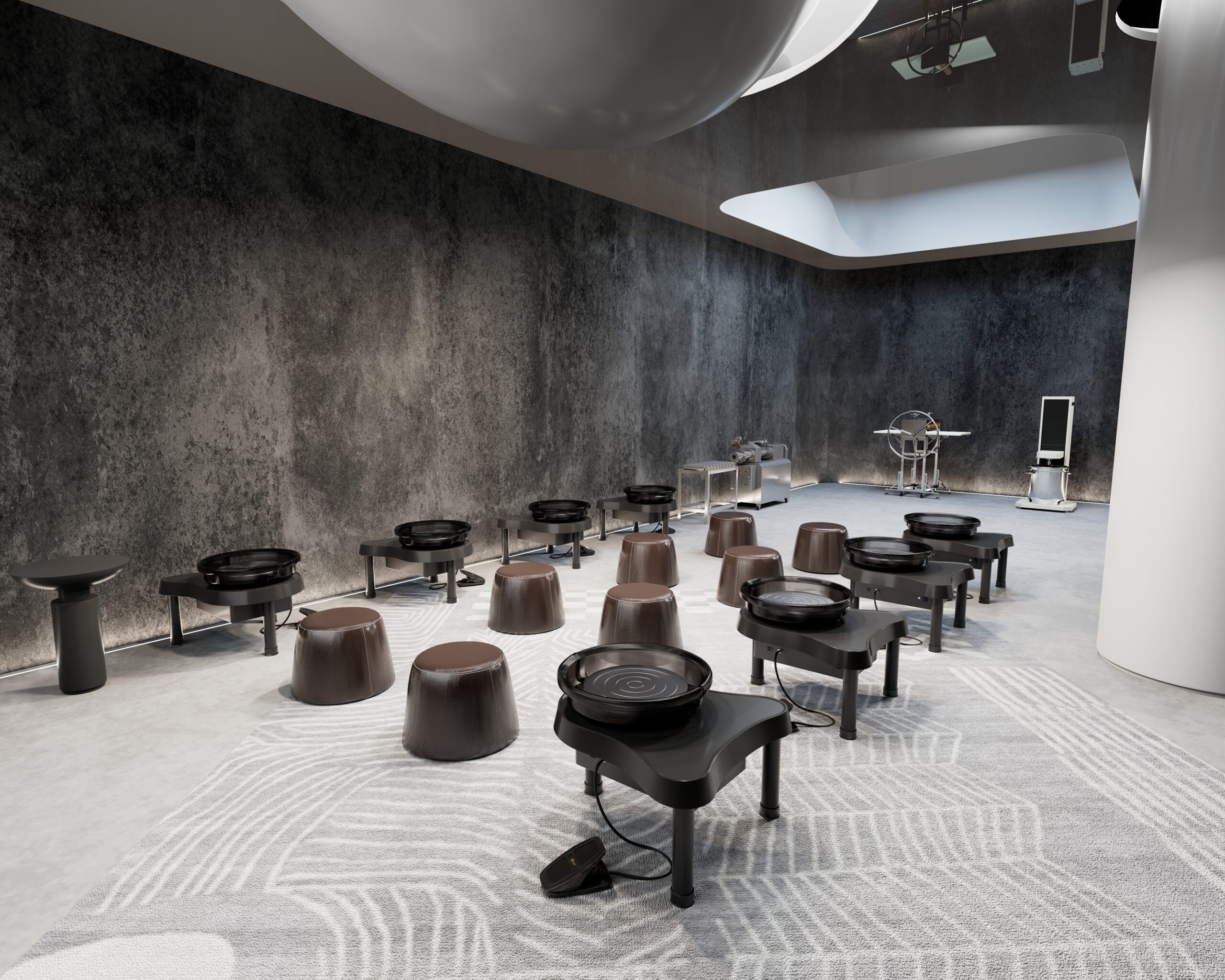

Direct – drive without a pulley. The motor directly drives the turntable, eliminating intermediate links, which results in better stability. Whether rotating slowly or at high speed, the top is very stable, and it is very energy – efficient, safe and environmentally friendly. When the DD motor is running, there is only the sound of the bearing, and dozens of machines in a classroom will not be noisy.
It can truly achieve immediate stop after braking like foreign potter’s wheels, that is, stop immediately when stepped on, with precise technology.
The speed can be increased slowly, such as 2 or 3 revolutions at a time, which is very easy to operate. Beginners and children can operate it well. The lowest rotational speed of 1 or 2 revolutions can be operated, which is a fully professional – level pottery – making equipment.
The motor is guaranteed for one year, and other parts are guaranteed for one year. Except for man – made damage, it is maintenance – free for life.
This brushless variable – speed potter’s wheel is characterized by stability and safety. Driven directly by the potter’s wheel, without the traditional pulley, it has low noise and good stability. For beginners and children, it is easier to find the center than traditional potter’s wheels. The pottery – making experience will be stronger. It is one of the professional potter’s wheels. It saves energy and power. When one hundred potter’s wheels are started, the noise in the classroom is less than 50 decibels.
Safety: With a leakage – proof plug, waterproof switch, waterproof motor cover and sealing ring design, and adopting the traditional furniture structure design, it ensures the stability of the bottom of the potter’s wheel without swinging and the safety of use.
